Parts Diagrams

Exploded views from the workshop manuals — use the part numbers to identify components and order parts.

These exploded views come from the workshop manuals. They help when rebuilding or restoring your own carburetors, checking that a carburetor is complete, or ordering parts. Please use the numbers from these diagrams so we're all referring to the same item — these are the diagrams we always work from. Click any diagram to enlarge.

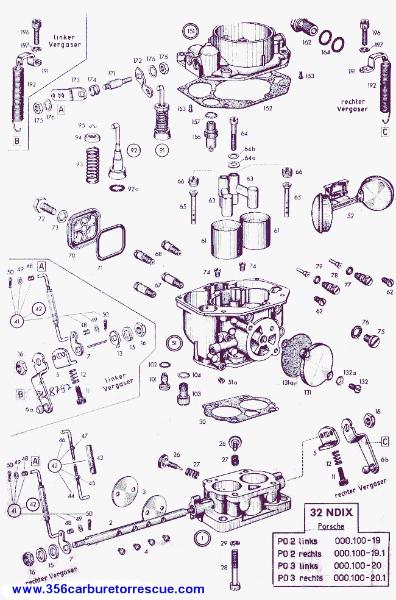

Zenith 32 NDIX exploded parts diagram — Zenith 32 NDIX

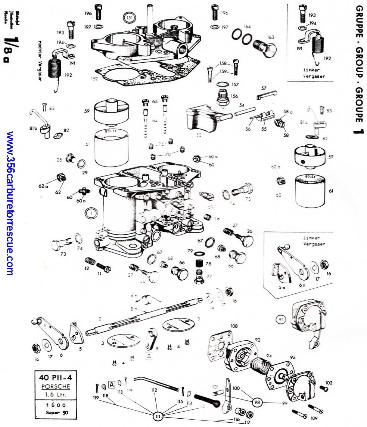

Solex 40 PII-4 Solid Shaft exploded parts diagram — Solex 40 PII-4 Solid Shaft

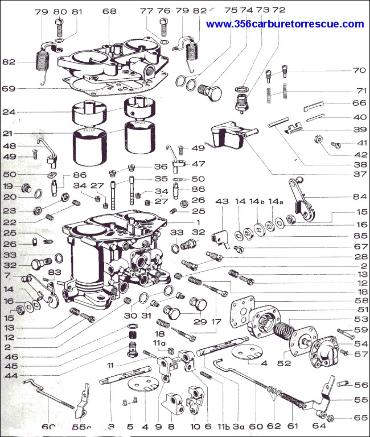

Solex 40 PII-4 Split Shaft exploded parts diagram — Solex 40 PII-4 Split Shaft

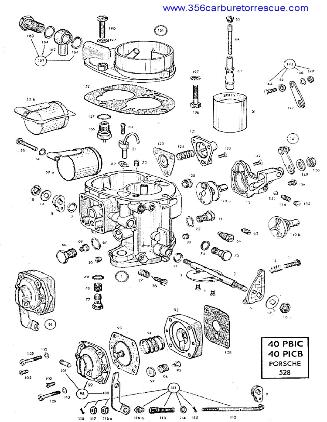

Solex 40 PBIC / PICB exploded parts diagram — Solex 40 PBIC / PICB

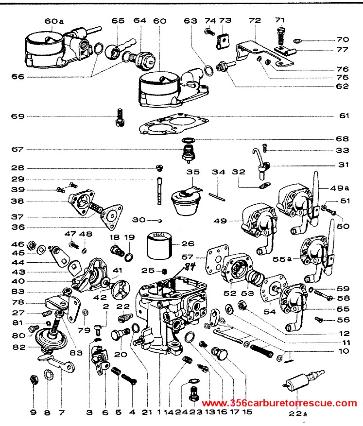

Solex 32 PICB / PCIB exploded parts diagram — Solex 32 PICB / PCIB

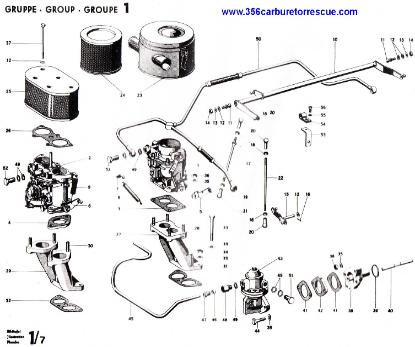

Carburetor Set-Up (Zenith & Solex) exploded parts diagram — Carburetor Set-Up (Zenith & Solex)

When ordering parts for the Solex dual-barrel carburetors, we use the solid shaft diagram numbers — use the split shaft diagram only for parts unique to that carburetor. Questions? Get in touch.
