Jack Staggs - Carburetor Balancing And Engine Tuning

Jack Staggs was kind enough to share this article on Carburetor Balancing and Engine Tuning, written for the Porsche 356 club magazine, spring 2010. Thanks Jack!

Click on each page separately to enlarge for easier reading

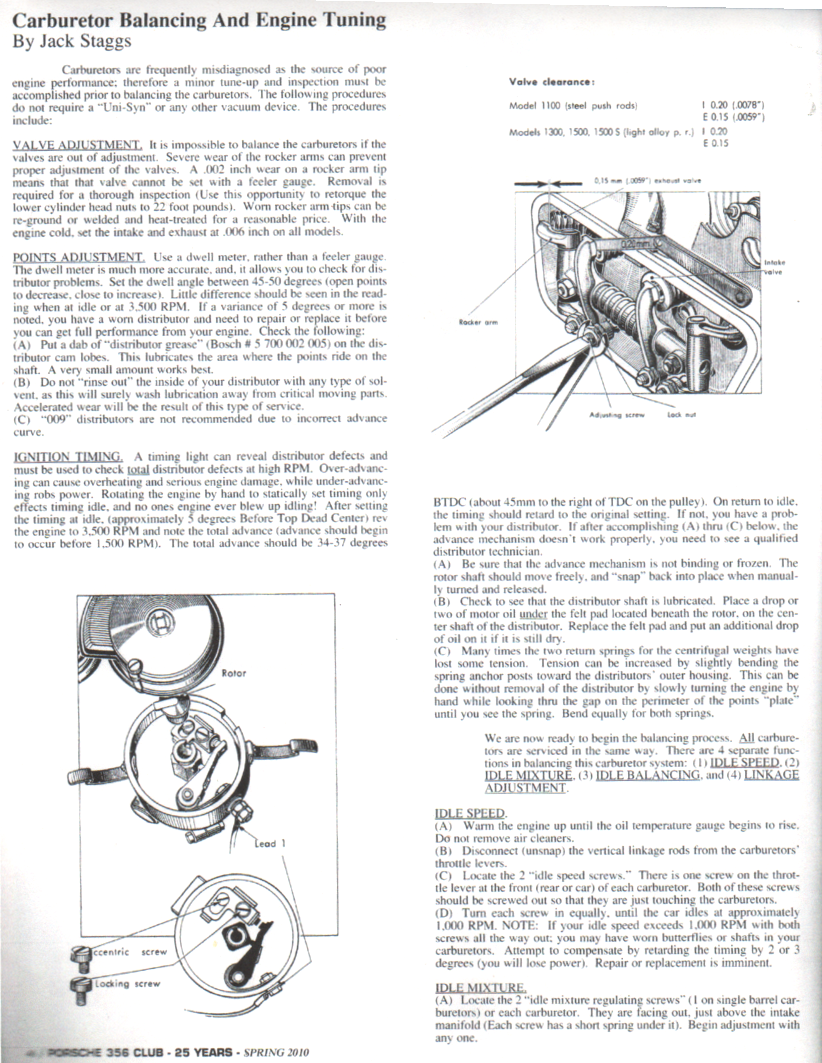

Jack Staggs carburetor balancing and engine tuning article, page 1 — two columns of typeset text under the heading Carburetor Balancing And Engine Tuning by Jack Staggs.
Jack Staggs carburetor balancing and engine tuning article, page 2 — two columns of typeset text with a small carburetor line drawing in the lower right corner.
